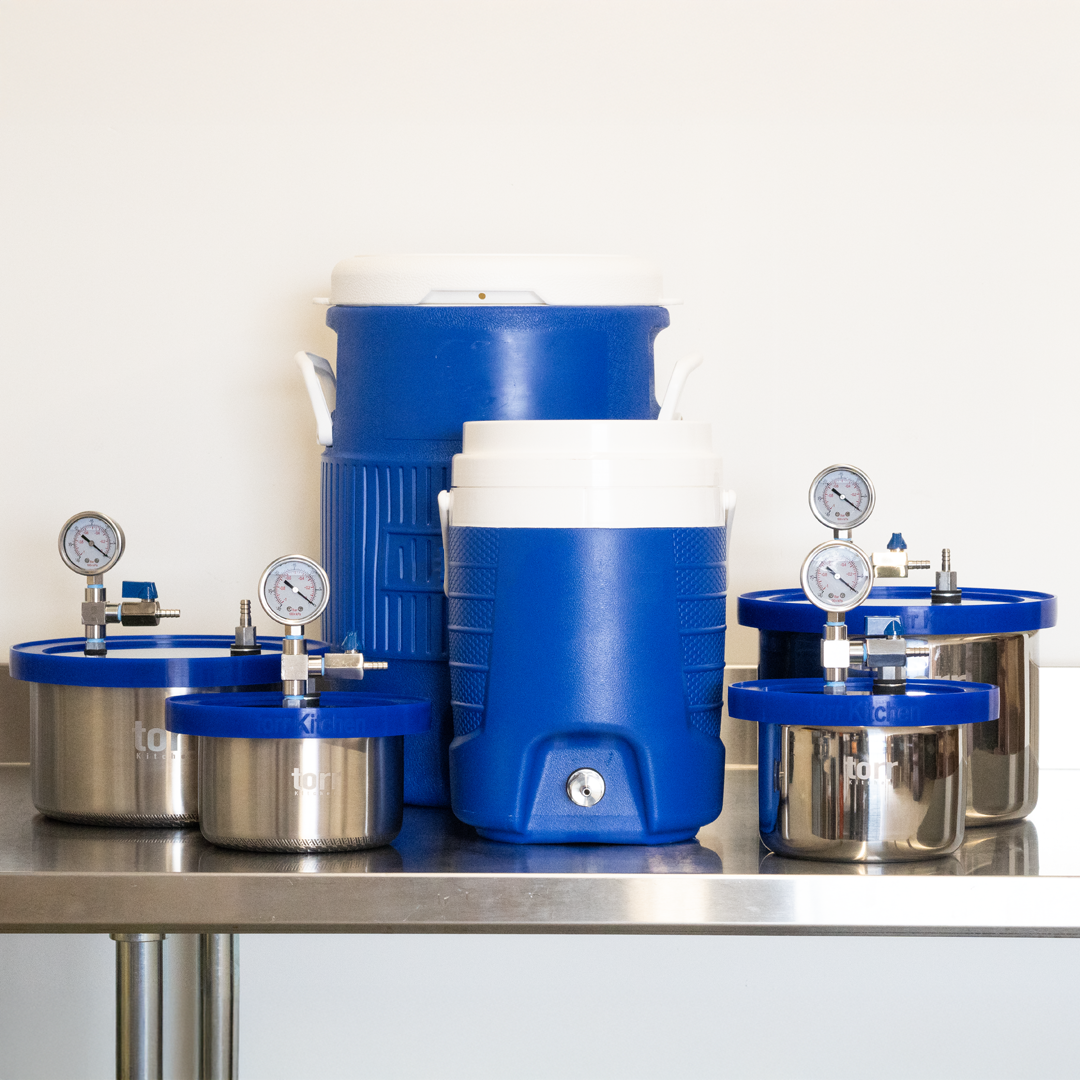

Base Set: Two-Gauge (two sizes available)

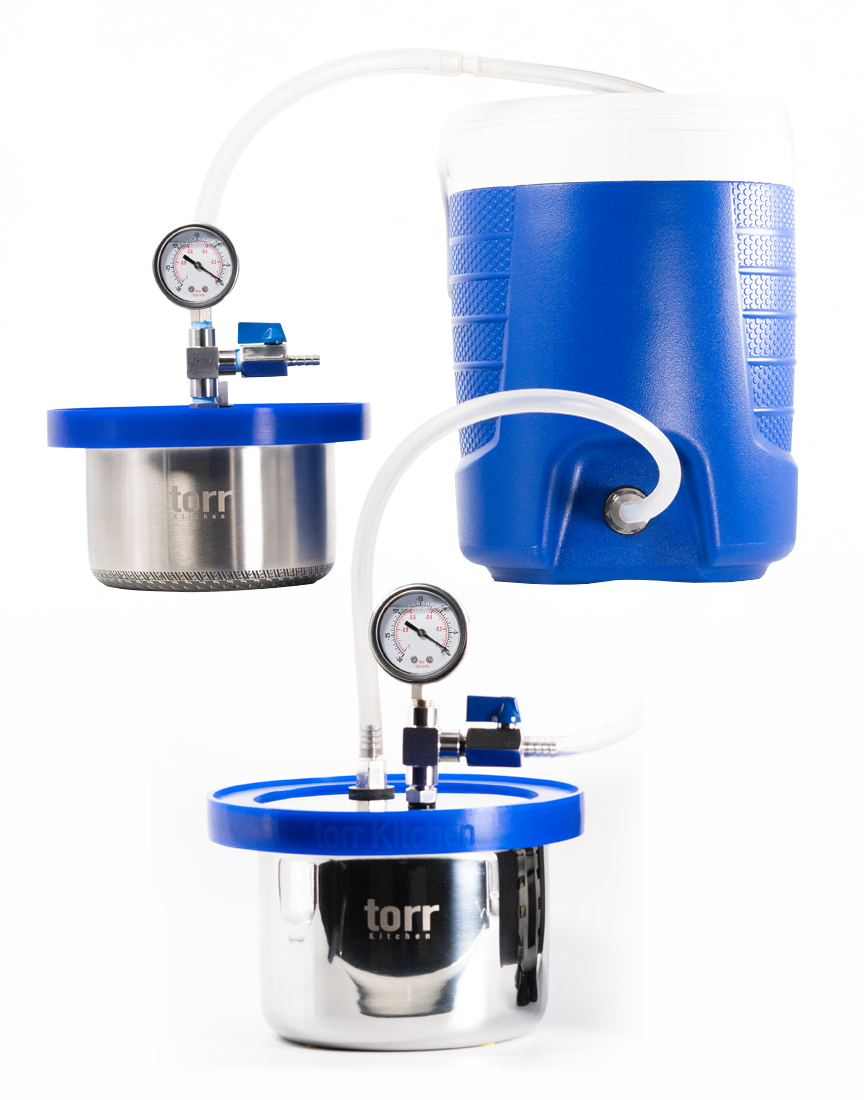

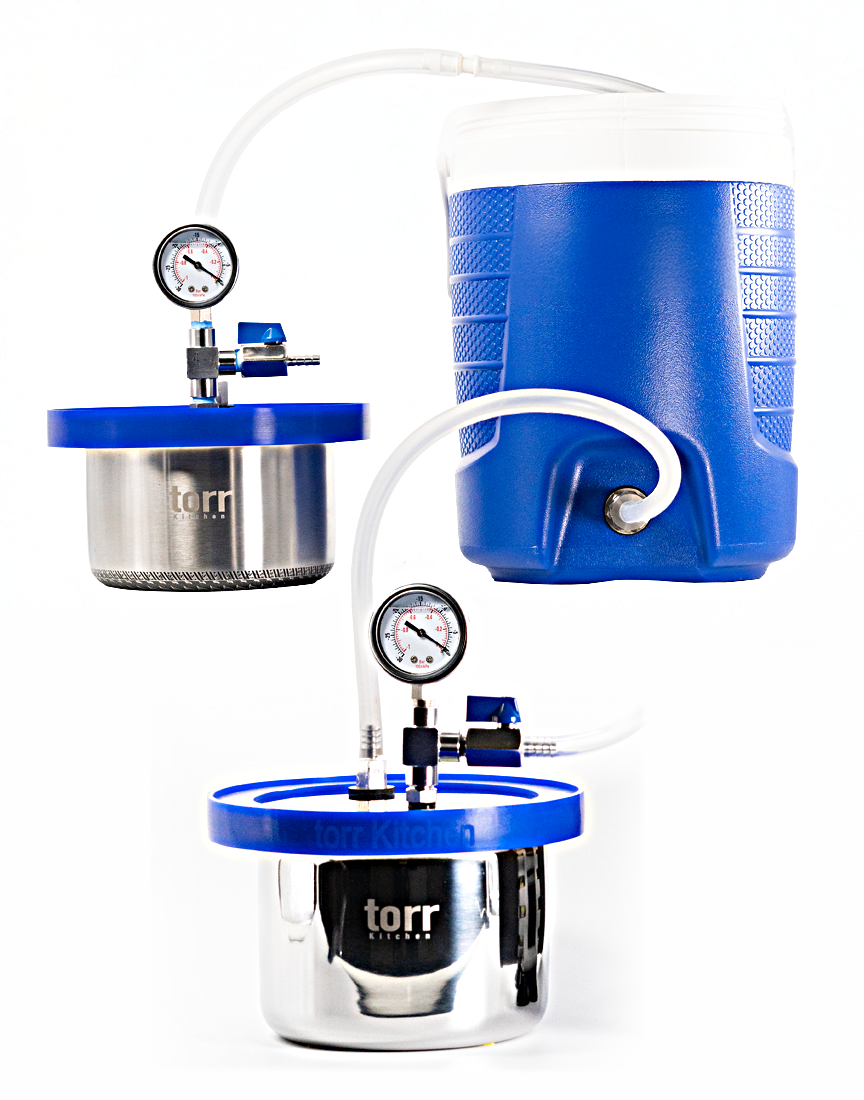

Two-Gauge Base Set includes three-way gauge and ball valve assemblies on both lids. The loading vessel set, torr-nado ladder condenser, and  recovery vessel set components of the Torr Kitchen Vacuum Still. The components can be used together as an ethanol recovery system, in combinations as vacuum chambers, or individually in the kitchen or lab.

Processing Capacities:
Small: 300 ml - 1,000 ml
Large: 1 L - 4 L

Sets Include:

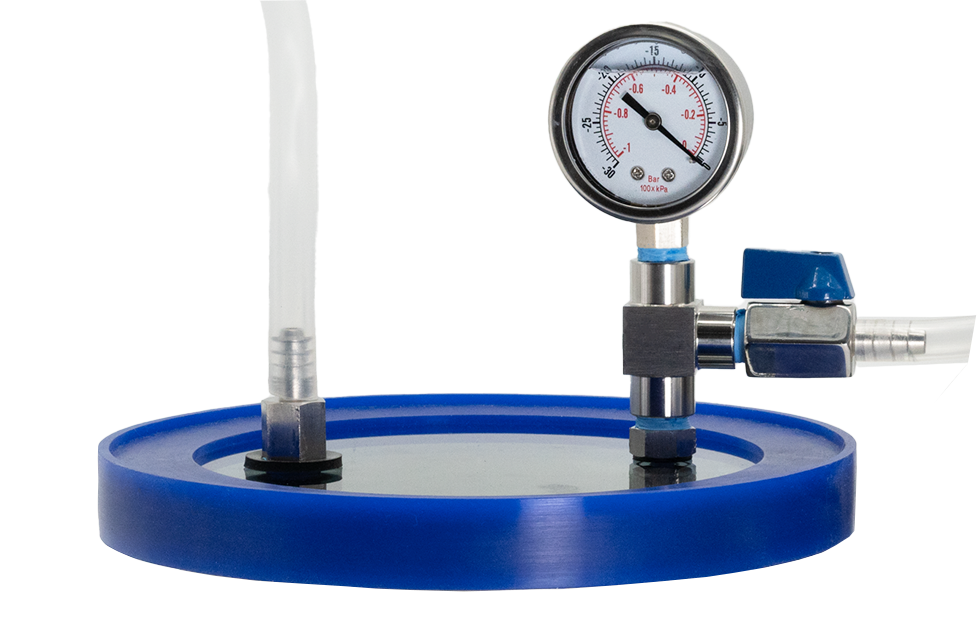

Loading Vessel Lid (LVL)
Small: 6.00" to 7.75"
Large: 8.50" to 10.25"

Custom designed: 1/2" thick tempered glass, silicone seals, 304 stainless steel fixtures.

10 mm straight barb fitting, 2" gauge, 1/4" barbed ball valve for an in-process feed or vacuum break.

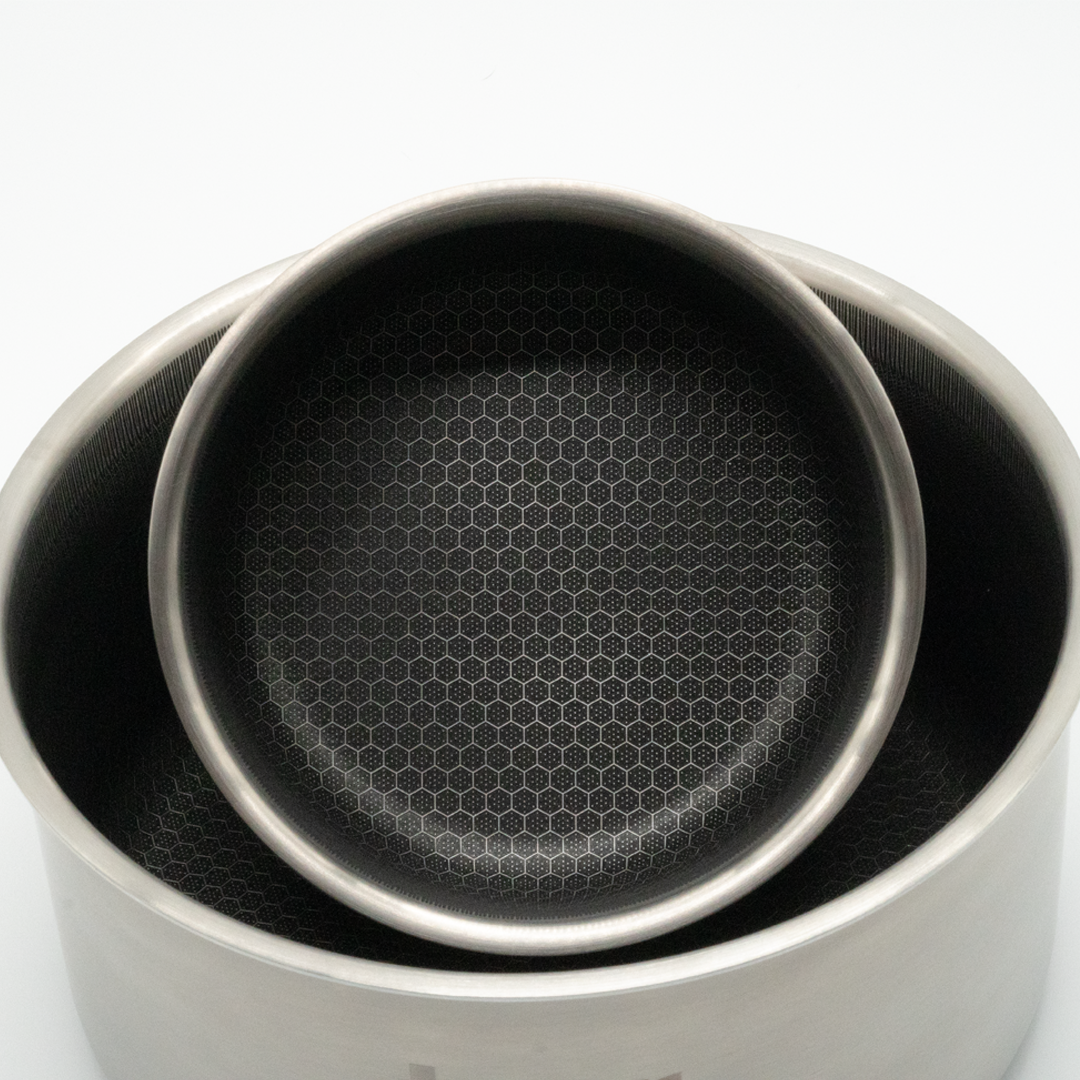

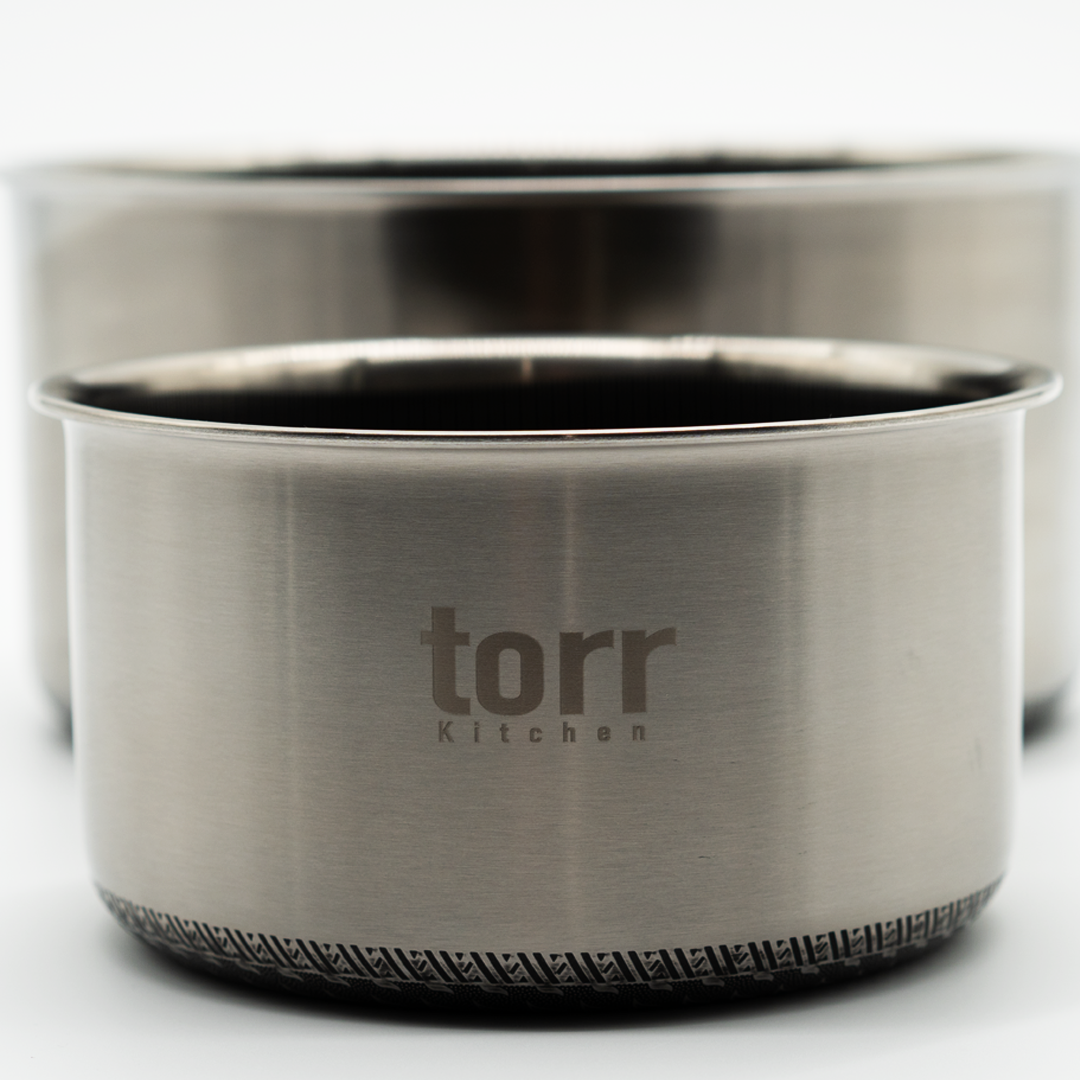

Loading Vessel (LV) Hybrid Pot
Small: 1.8L, 7.00”
Large: 5.5 L, 10.25”

3-ply 304 stainless steel with hybrid honeycomb and non-stick coating cooking surface.

Induction heating (IH) compatible.

No Handles to get in the way or compromise vacuum.

Extended, easy-to-grip, easy-pour rim.  No mess pouring.

Torr-nado Ladder Condenser
Differential pressure flow, cooling, phase change, and liquid flow dynamics are balanced using gravity in concert with our unassuming “torr-nado ladder." Custom stainless hardware with 1/4” barb hose connectors inside and out for easy connection.

The smaller 2 gallon size is designed to match with with the small set and the 5 gallon for the large set.

Recovery Vessel Lids (RVL)
Small: 6.00" to 7.75"
Large: 8.50" to 10.25"

Custom designed: 1/2" thick tempered glass, silicone seals, 304 stainless steel fixtures.

8 mm straight barb fitting, 2" gauge, 1/4" barbed ball valve.

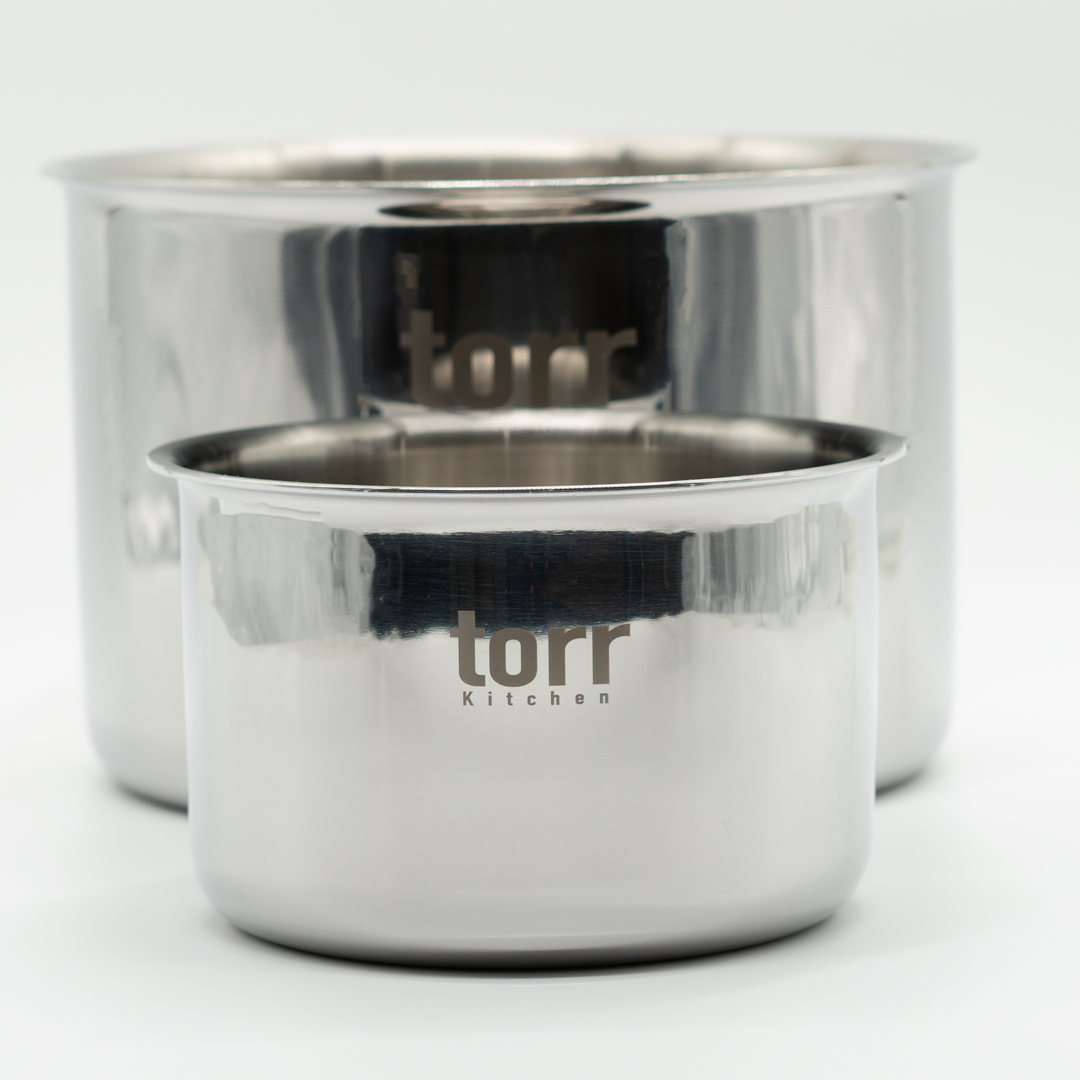

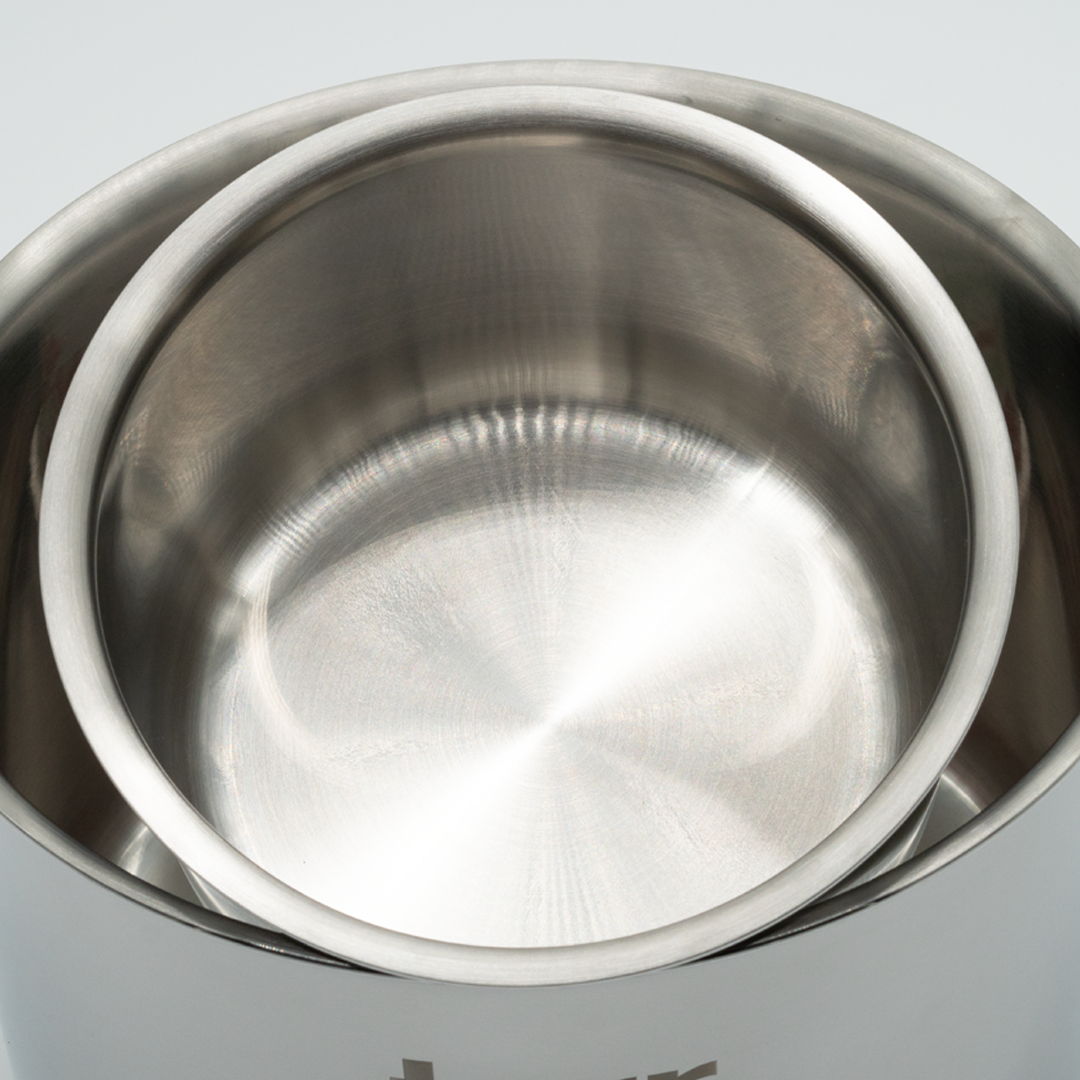

Recovery Vessel (RV) Stainless Pot
Small: 2.1 L, 7.00”
Large: 7.2 L, 10.25”

2.2 mm, 3-ply 304 stainless steel with polished mirror finish inside and out.

Induction heating (IH) compatible.

No Handles to get in the way or compromise vacuum.

Extended, easy-to-grip, easy-pour rim.  No mess pouring.

Transfer Tubing
3/8" ID tubing: LVL to condenser.
1/4" ID tubing: Condenser to RVL.
!! tubing has 125F temp limit under vacuum. If run too hot, it will collapse and replacement tubing will be necessary.

IMPORTANT NOTE:
For the base set to run it requires an appropriate heat source and vacuum source. DO NOT use without understanding what heat and vacuum sources are appropriate. The IH Heating Unit and Diaphragmatic Vacuum Pump offered by Torr Kitchen were specially customized to work with this set.
