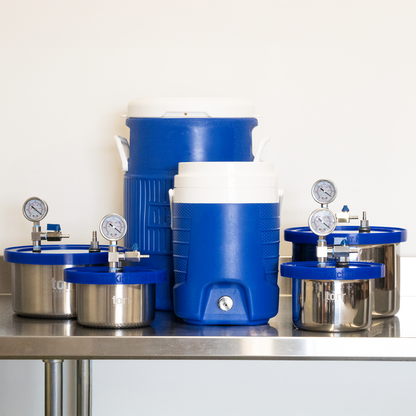

Vessels & Lids Set with Dual Gauges (two sizes available)

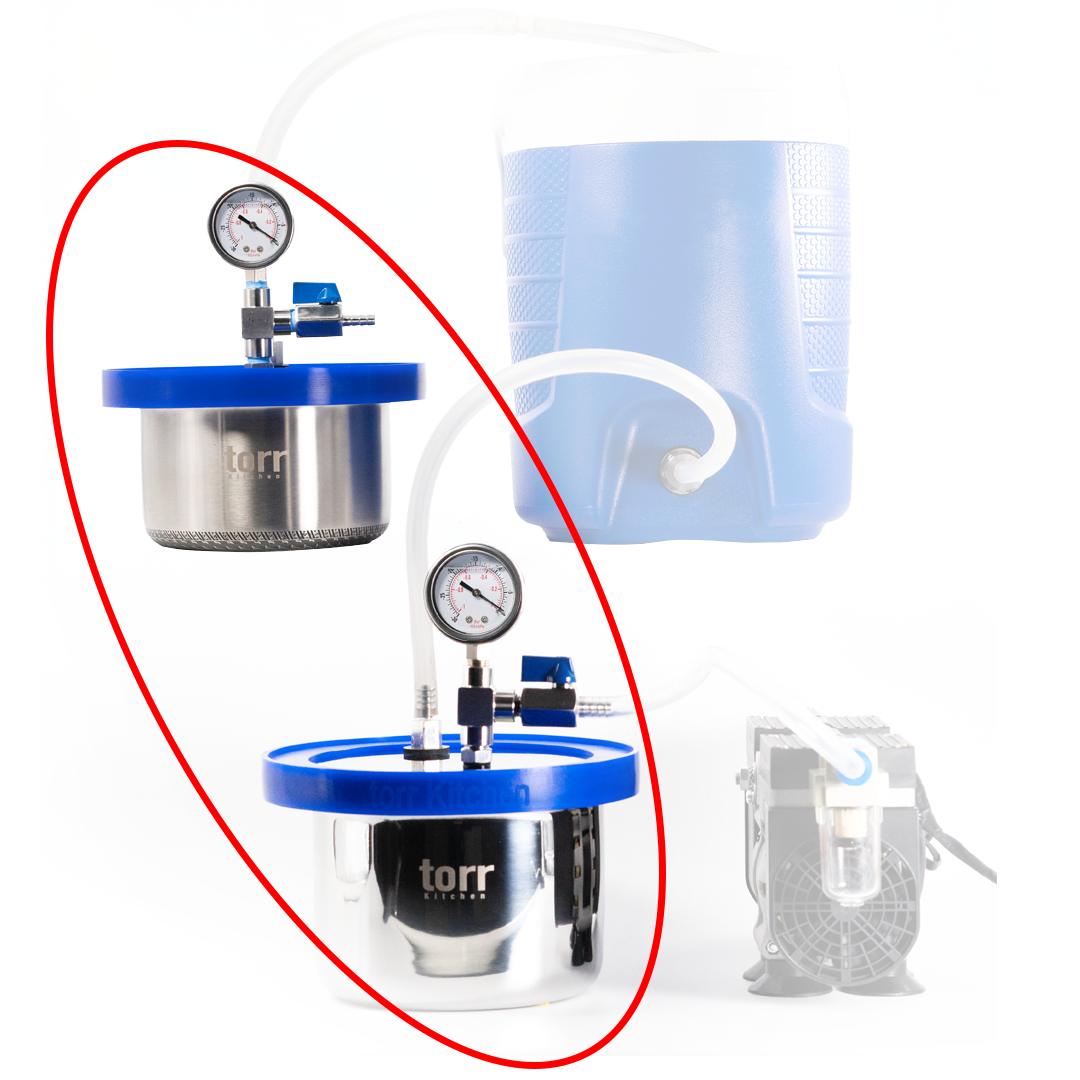

Vessels & Lids Set with Dual Gauges include the loading and recovery containment components of the kitchen set and ethanol recovery system. The components can be used together as an ethanol recovery system, in combinations as vacuum chambers, or individually in the kitchen or lab.

Processing Capacities:
Small: 300 ml - 1,000 ml
Large: 1 L - 4 L

Sets Include:

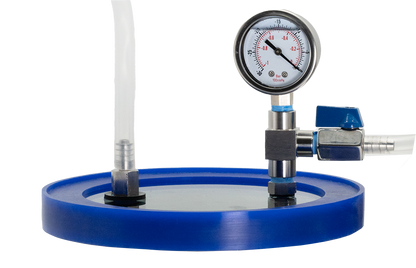

Loading Vessel Lid (LVL)
Small: 6.00" to 7.75"
Large: 8.50" to 10.25"

Our high-grade seal around 1/2" thick tempered glass with 304 stainless steel fixtures.

10 mm straight barb fitting, 2" gauge, 1/4" barbed ball valve for an in-process feed or vacuum break.

Loading Vessel (LV) Hybrid Pot
Small: 1.8L, 7.00”
Large: 5.5 L, 10.25”

3-ply 304 stainless steel with hybrid honeycomb and non-stick coating cooking surface.

Induction heating (IH) compatible.

No Handles to get in the way or compromise vacuum.

Extended, easy-to-grip, easy-pour rim.  No mess pouring.

Recovery Vessel Lids (RVL)
Small: 6.00" to 7.75"
Large: 8.50" to 10.25"

Our high-grade seal around 1/2" thick tempered glass with 304 stainless steel fixtures.

8 mm straight barb fitting, 2" gauge, 1/4" barbed ball valve.

Recovery Vessel (RV) Stainless Pot
Small: 2.1 L, 7.00”
Large: 7.2 L, 10.25”

2.2 mm, 3-ply 304 stainless steel with polished mirror finish inside and out.

Induction heating (IH) compatible.

No Handles to get in the way or compromise vacuum.

Extended, easy-to-grip, easy-pour rim.  No mess pouring.

Transfer Tubing

3/8" ID tubing: LVL to condenser.
1/4" ID tubing: Condenser to RVL.

Condenser Selection Note:
Select the condenser that matches the size of the Vessels & Lids Set. For the small set, choose the 2 gallon condenser and the 5 gallon for the large set.
